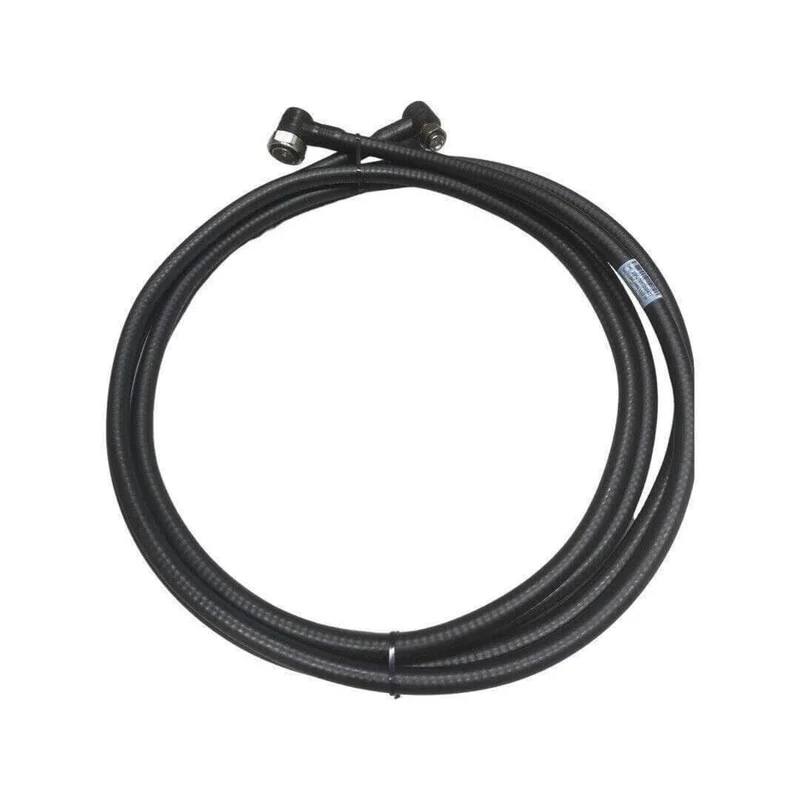

RF Coaxial Jumper Cable LCF 1/2 ,5M 4310 Male Angel-DIN Male Angel Hengxin

Sale!

2026_05_18_37310

RF Coaxial Jumper Cable LCF 1/2 ,5M 4310 Male Angel-DIN Male Angel Hengxin

Original price was: $44.00.Current price is: $13.20.

SKU: 8069593432296 Category: Australian Empire Shop

Description
Reviews (0)

Description

Electrical Specifications

Characteristics Impedance				50 Ohm
Frequency Range				DC~6GHz
Insulation Resistance				≥5000MΩ
Insulation Resistance				2500V rms (DC)
Operating Voltage				1500Vrms
Insertion Loss		@DC-2.7 GHz	≤0.14*L+0.2dB (L=Cable Length)
VSWR		@0.8-1.0GHz	≤1.10
		@1.7-3.0GHz	≤1.13
PIM3(2*43dBm)		@1800MHz(2*43dBm)	≤-155dBc

Environmental & Mechanical Specifications

Cable Tensile resistance			≥500N
Torque Proof (Nut)			4.3-10 Type:5N·m
Storage Temperature			-45°C to +65°C
Operating temperature			-45°C to +85°C
Water Proof level			IP68 24hr, 1m, 20℃
RoHS			Compliant
